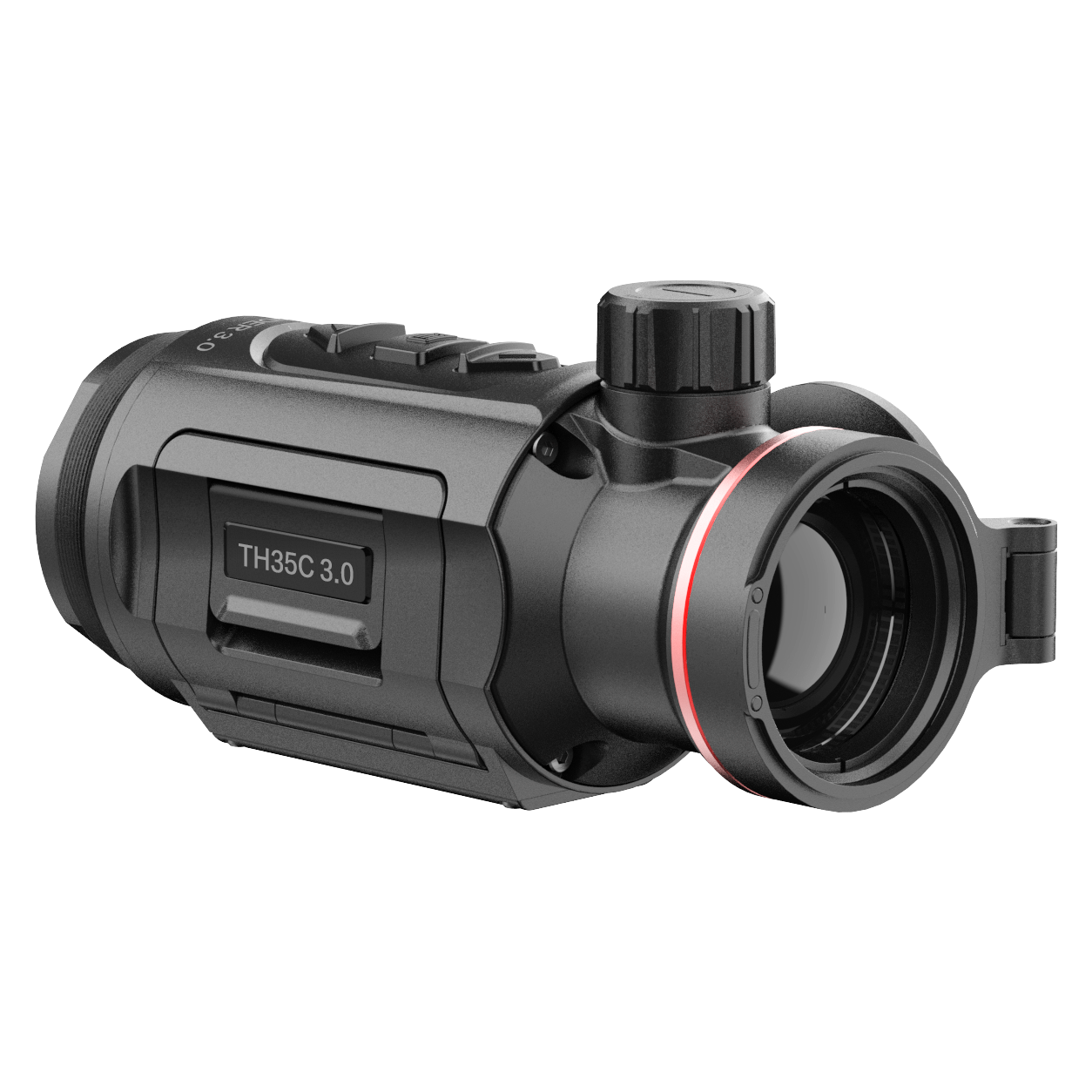

HIKMICRO Thunder 3.0 TH35C 3.0 Clip-On – High Performance Thermal Module

Main features

• 384 × 288 resolution, with thermal sensor @12 μm
• High sensitivity thermal detector NETD \< 15 mK (@25°C, F# =1.0)
• 35mm, F1.0 lens with a detection range of up to 1,800m
• 0.49-inch OLED display with 1920 x 1080 resolution
• HIKMICRO Shutterless Imaging System (HSIS)
• Replaceable and rechargeable Li-ion battery, 6 hours of continuous operation
• High impact resistance up to 1000 g/0.4 ms

THERMAL MODULE

• Sensor: VOx Uncooled Focal Plane Arrays
• Resolution: 384 × 288
• Frame rate: 50 Hz
• Pixel pitch: 12 μm
• Spectral Band: 8 µm – 14 µm
• NETD: < 15 mK (@25°C, F# = 1.0)
• Lens (Focal Length): 35 mm, F1.0
• Focus Mode: Manual
• Detection Range: 1800 m
• Min. Focus Distance: 10 m
• Magnification: 1
• Field of View (H × V), Degrees /m @100 m: 7.5° × 5.7° / 13.2 m × 9.9 m

DISPLAYING IMAGES

• Display: 0.49 inch, OLED, 1920 × 1080
• Palettes: White Hot, Black Hot, Red Hot, Fusion, Monochrome Green, Monochrome Red
• Exit pupil: 25 mm
• Eye Relief: 20 mm
• Brightness adjustment: Yes
• Tone Adjustment: Cool, Warm
• Contrast Adjustment: Yes
• Image Pro 2.0: Yes
• HSIS: Yes

SYSTEM

• Video Recording: Yes
• Photo Recording: Yes
• Sound Recording: Yes
• Recording by Reverse Activation: Yes
• Sleep Mode: Yes
• Built-in Memory: 64 GB
• Virtual reticle: Yes
• Reticle: No
• Hotspot: Yes
• Follow Hotspot: Yes
• Adjustment Profiles (zeroing): 5
• Max. Recoil: 1000 g/0.4 ms
• Image calibration: Yes
• Local Album: Yes

FOOD

• Battery Type: Replaceable and rechargeable Li-ion batteries
• Battery Operating Time: 6 hours of continuous operation (@25°C, Htspot off)
• Type-C Power Supply: DC 5V/2A, USB Type-C interface, Supports QC3.0

GENERAL

• Protection index: IP67
• Dimensions: 143.4mm × 67.5mm × 72.9mm
• Weight: 460 g with battery
• Working Temperature: -30°C to 55°C
• Central height: 32 mm

The HIKMICRO Thunder 3.0 TH35C 3.0 Clip-On is designed for hunters looking for performance and reliability. Equipped with a 384 × 288 @12 µm detector and a thermal sensitivity <15 mK, it ensures a clear image even in difficult conditions. Its 1920 × 1080 OLED display offers an exceptional visual experience, and its detection range reaches up to 1800 meters. With the Thunder 3.0 TH35C 3.0, locate your game with unparalleled precision.
