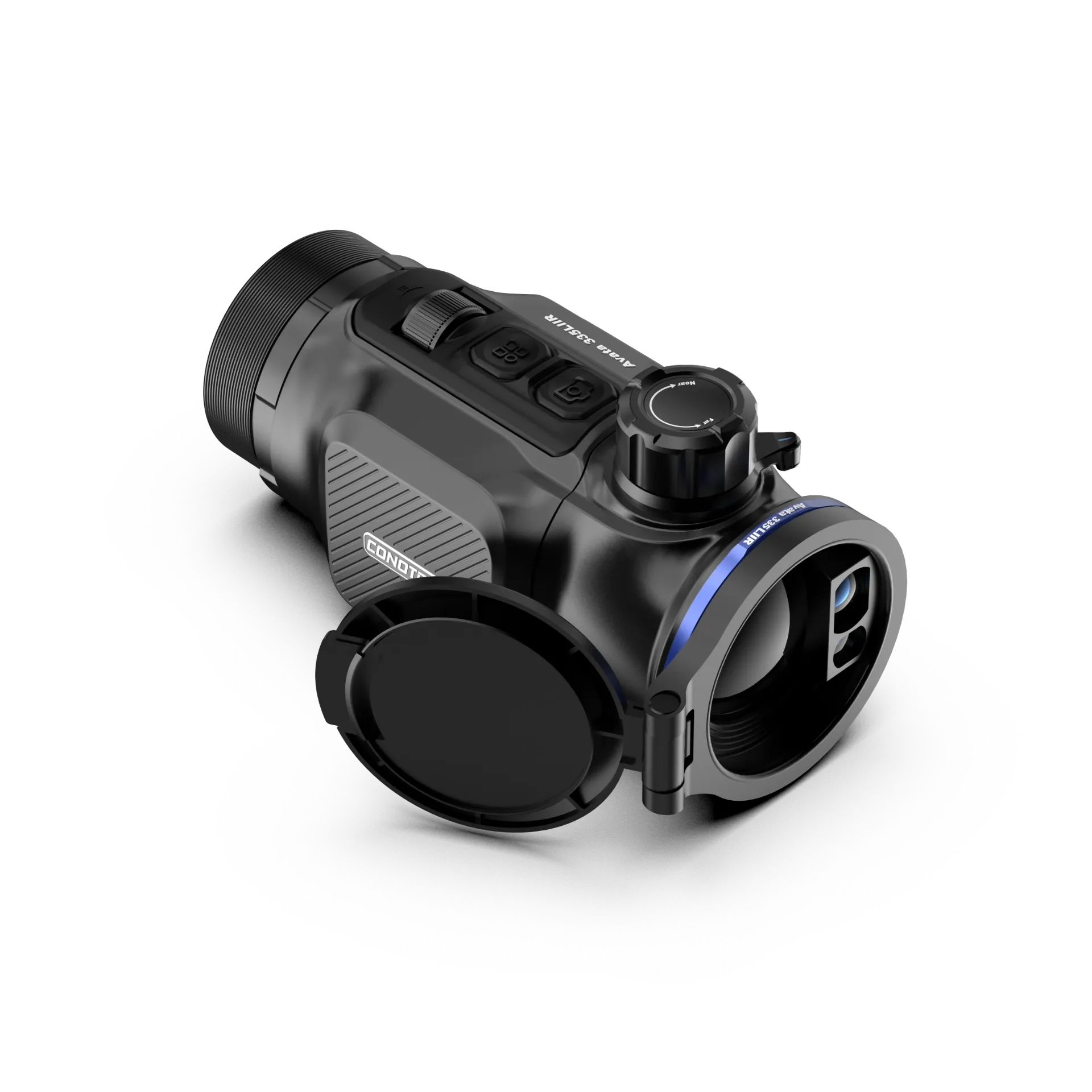

AVATA 335 LIIR Conotech – Thermal clip-on with integrated laser rangefinder

The AVATA 335 LIIR builds on the proven foundation of the 335 model and adds a game-changing feature: a laser rangefinder integrated directly into the thermal lens using patented LIIR technology. This integration ensures perfect alignment between the thermal axis and the laser axis, eliminating parallax errors encountered with external systems.

This clip-on not only allows for thermal observation of a scene but also enables precise distance measurement to the target without changing equipment or position. This combination significantly enhances terrain understanding and decision-making, especially in situations where distance estimation is critical.

The AVATA 335 LIIR maintains a compact format and a mount without re-zeroing, ensuring a smooth transition between daytime and thermal vision. The thermal image remains clear, contrasted, and usable in all weather conditions, while the rangefinder provides reliable and repeatable measurements at long distances.

Designed for intensive use, it withstands heavy recoil, harsh weather, and terrain constraints. It is aimed at users who want a complete solution, combining thermal observation and distance measurement in a single device, without compromising on accuracy.

Technical specifications

• Sensor: Uncooled VOx

• Resolution: 384 × 288

• Pixel pitch: 12 µm

• Frequency: 50 Hz

• NETD: < 15 mK

• Lens: 35 mm

• Magnification: 1×

• Zoom: 1× / 2× / 4×

• Field of view at 100 m: 13.16 × 9.87 m

• Laser rangefinder: yes

• Rangefinder range: 5–1200 m

• Accuracy: ±1 m

• Screen: OLED 1024 × 768

• Internal memory: 64 GB

• Battery: 2×18500

• Battery life: up to 7 h

• Waterproof rating: IP67

• Recoil resistance: 7000 J

• Weight: 470 g
