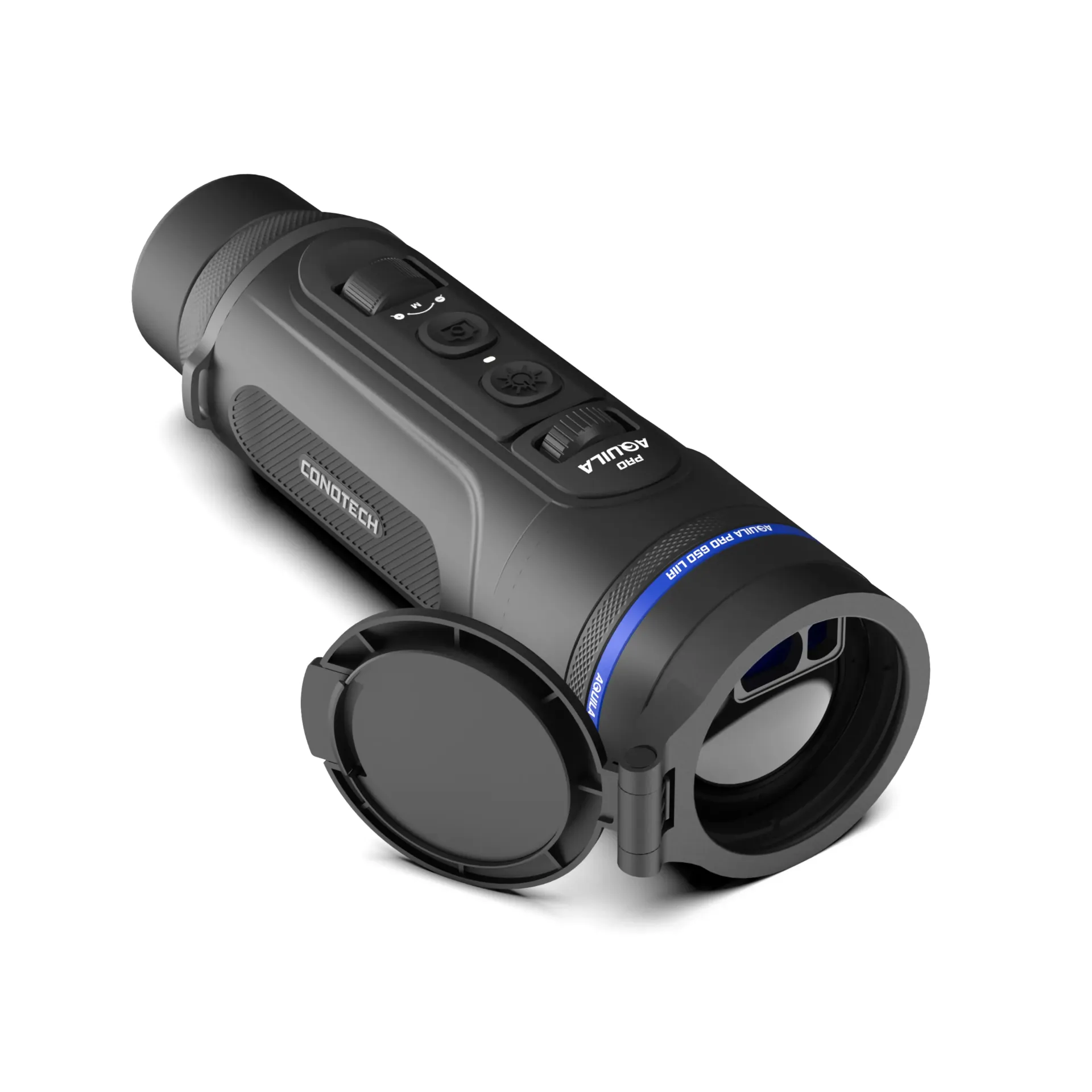

Aquila Pro 650 LIIR Conotech – Thermal monocular with integrated laser rangefinder

The Aquila Pro 650 LIIR is the most advanced version in the range, integrating both very high-quality thermal imaging and a laser rangefinder directly integrated into the optics. It is equipped with a 640 × 512 pixel thermal sensor with a sensitivity of less than 18 mK, providing an extremely precise and detailed image, even in difficult conditions.

Its 50 mm lens ensures excellent detection range and effective long-distance observation. The integrated laser rangefinder allows for precise measurement of distances from 5 to 1200 meters, a major asset for terrain analysis and decision-making.

The high-definition AMOLED screen ensures optimal visual comfort, while advanced features such as photo and video recording, multiple color palettes, and progressive digital zoom make the device extremely versatile. Robust, waterproof, and designed for intensive outdoor use, the Aquila Pro 650 LIIR stands out as a reference tool for users seeking performance, precision, and versatility in a single device.

Technical specifications

• Sensor: Uncooled VOx
• Sensor resolution: 640 × 512
• Pixel pitch: 12 μm
• Frame rate: 50 Hz
• Spectrum: 8–14 μm
• Thermal sensitivity: NETD < 18 mK
• Lens: 50 mm
• Optical magnification: 2.8×
• Digital zoom: up to 8×
• Field of view (H × V): approx. 8.8° × 7°
• Thermal detection range: up to 2600 m
• Laser rangefinder: yes
• Rangefinder range: 5 to 1200 m
• Focus: manual
• Color palettes: multiple
• Screen: AMOLED 1024 × 768
• Photo recording: yes
• Video recording: yes
• Audio: yes
• Internal memory: built-in
• Connectivity: Wi-Fi
• Battery: built-in rechargeable lithium
• Battery life: up to 6.5 h
• External power: USB-C
• Waterproof rating: IP67
• Weight: approx. 520 g
• Dimensions: approx. 210 × 75 × 65 mm
