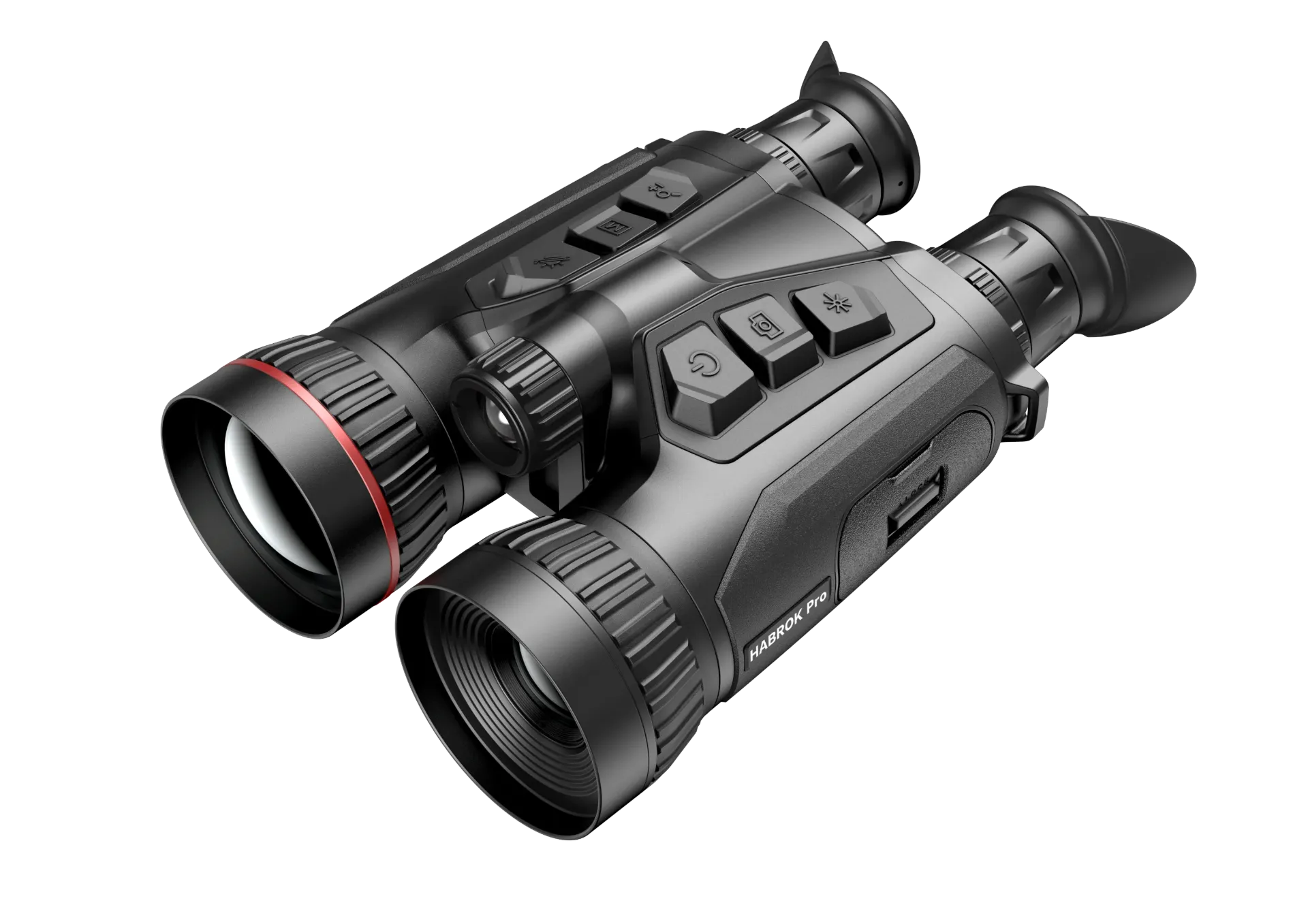

HIKMICRO HABROK Pro HX60LS – Multi-Spectrum Thermal Binoculars 1280×1024 with 1000 m Rangefinder

The HIKMICRO HABROK Pro HX60LS represents one of the most advanced multi-spectral binoculars on the market. Designed for demanding users, it combines ultra-high-definition thermal imaging, 4K digital vision, an integrated laser rangefinder, and powerful infrared lighting in a single robust and ergonomic device.

Its 1280×1024 @12 μm thermal sensor with exceptional sensitivity below 15 mK allows for extremely fine reproduction of thermal contrasts. Even in fog, humidity, light rain, or low thermal differential, the image remains detailed and usable. Paired with a 60 mm F1.0 thermal lens, it offers a detection range of up to 3100 meters, allowing for clear identification of a heat source at very long distances.

In parallel, the 4K 3840×2160 digital optical module with a 60 mm F2.2 lens ensures precise observation in bright light as well as low light. The replaceable 850 nm infrared illuminator allows for effective night vision up to 400 meters. This thermal + optical combination allows for a complete scene analysis, with the ability to switch between modes depending on conditions.

The integrated laser rangefinder measures distances up to 1000 meters with an accuracy of ±1 meter, providing essential information for terrain assessment. The 0.49-inch Full HD 1920×1080 OLED screen ensures optimal visual comfort and excellent display clarity.

Designed for prolonged use, the HABROK Pro HX60LS operates for over 5.5 hours thanks to its rechargeable and replaceable battery. Its ergonomic design, controlled weight, and IP67 construction make it a tool perfectly suited for demanding environments.

It also features photo and video recording with audio, 64 GB of internal memory, GPS, digital compass, PIP mode, hot spot tracking, and Wi-Fi connectivity via the HIKMICRO Sight app for remote transfer and control.

The HABROK Pro HX60LS is aimed at professional users or enthusiasts looking for a complete multi-spectral observation solution, combining long-range thermal detection, detailed 4K vision, and precise telemetry in a single high-performance device.

Technical specifications:

Thermal module

• Sensor: Uncooled VOx

• Resolution: 1280 × 1024

• Frequency: 50 Hz

• Pixel pitch: 12 μm

• Spectral band: 8–14 μm

• Thermal sensitivity: NETD < 15 mK

• Thermal lens: 60 mm F1.0

• Detection range: up to 3100 m

• Thermal magnification: 2.6× to 20×

• Field of view: 14.6° × 8.8°

Digital optical module

• Sensor: CMOS 1/1.8”

• Resolution: 3840 × 2160 (4K)

• Lens: 60 mm F2.2

• Digital zoom: 5.5× to 22×

• IR illuminator: 850 nm replaceable

• IR range: up to 400 m

Display

• Screen: OLED 0.49”

• Resolution: 1920 × 1080

• Diopter adjustment: -5D to +3D

• Interpupillary distance: 60 to 74 mm

• Multiple thermal palettes

Laser rangefinder

• Maximum range: 1000 m

• Accuracy: ±1 m

• Laser class: Class 1

• Wavelength: 905 nm

System functions

• Photo and video recording with audio

• Internal memory: 64 GB

• PIP

• Hotspot and Hot Track

• Built-in GPS

• Digital compass

• Sleep mode

• Wi-Fi and HIKMICRO Sight app compatibility

Power supply

• Rechargeable and replaceable Li-ion battery

• Battery life: 5.5 h

• External power supply USB-C 5V/9V

General

• Dimensions: 152.8 × 81.95 × 231.5 mm

• Weight: 1050 g

• Protection rating: IP67

• Operating temperature: -30°C to +55°C

• Tripod thread: 1/4”-20 UNC
