See what others do not see

When an animal appears at the edge of a wood, in a field, or at the bottom of a valley, spotting it is often just the first step.

You also need to be able to identify it correctly.

This is precisely where the HABROK makes all the difference.

Thanks to the combination of thermal technology and high-definition digital optics, they first allow you to detect the presence of an animal through its thermal signature, and then to analyze the details precisely to confirm its identification.

On the ground, this changes everything.

A simple hot spot quickly becomes a clearly identifiable wild boar, deer, or fox.

Technical specifications

Main Features

• Resolution of 384 × 288 with a 12 μm thermal sensor

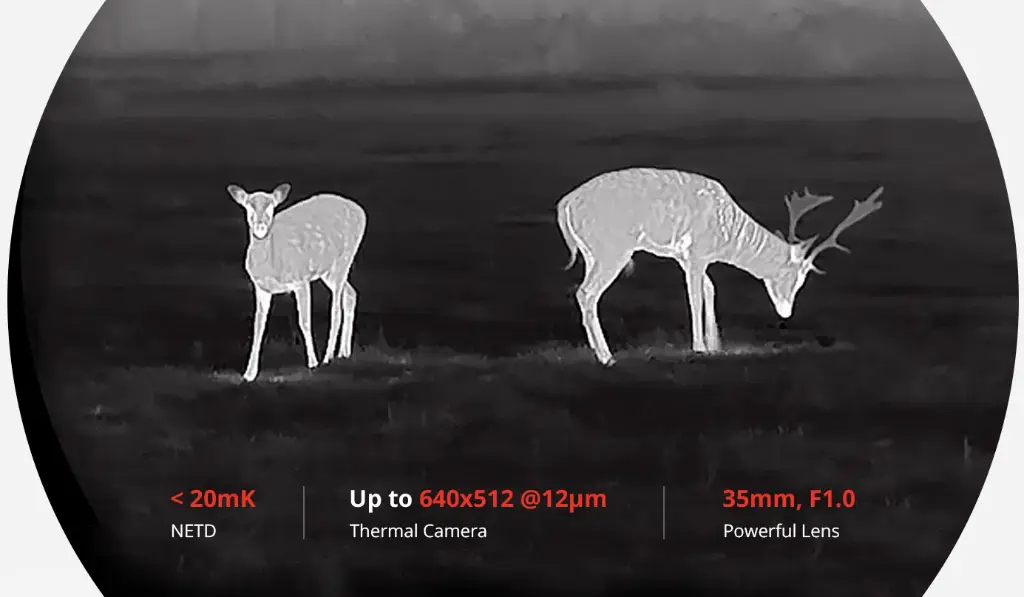

• High sensitivity thermal detector NETD < 20 mK (@25°C, F# = 1.0)
• 35 mm lens (F1.0) with a detection range of up to 1800 m
• High resolution 2560 x 1440 CMOS detector
• 0.49 inch OLED display with a resolution of 1920 × 1080
• Integrated 940 nm IR lamp
• Precision laser rangefinder (±1 m) with distance measurement up to 1000m

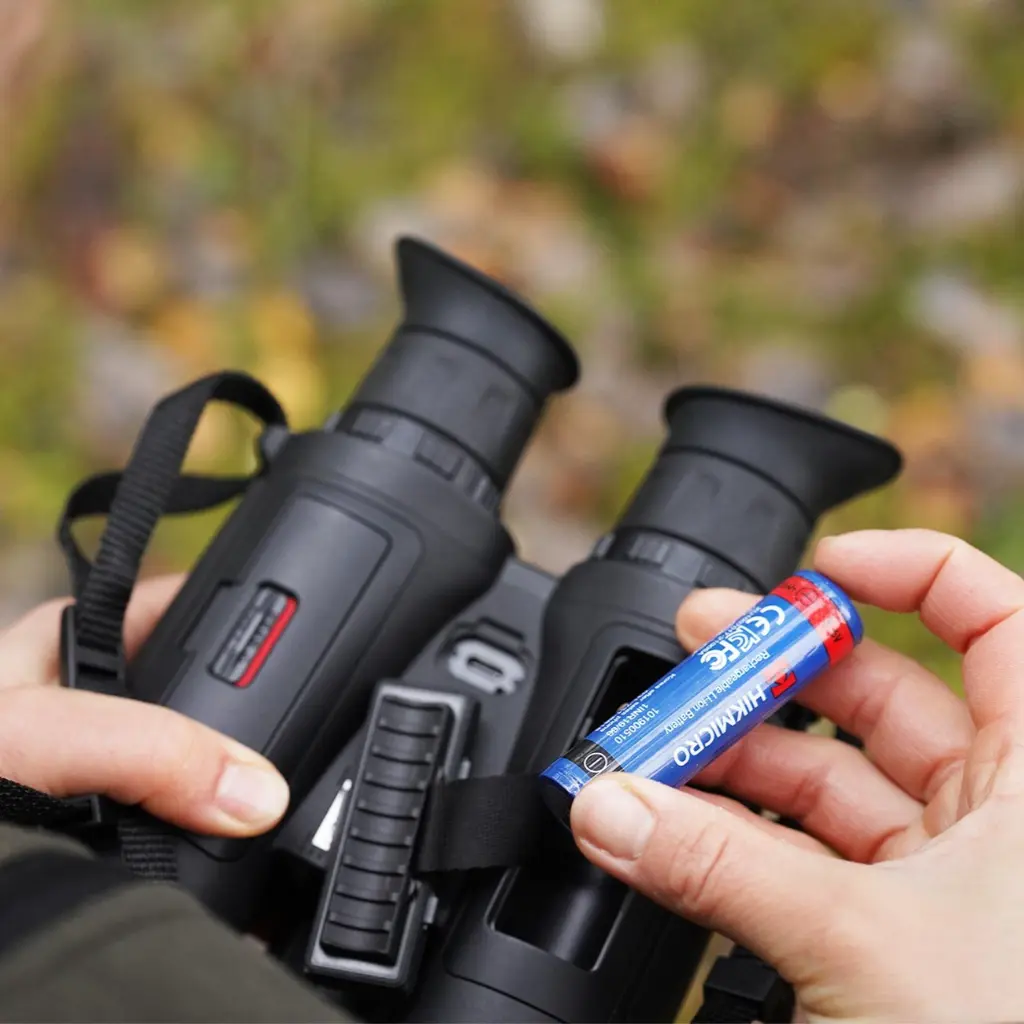

• Replaceable and rechargeable Li-ion battery.
• Up to 5 hours of continuous operation.

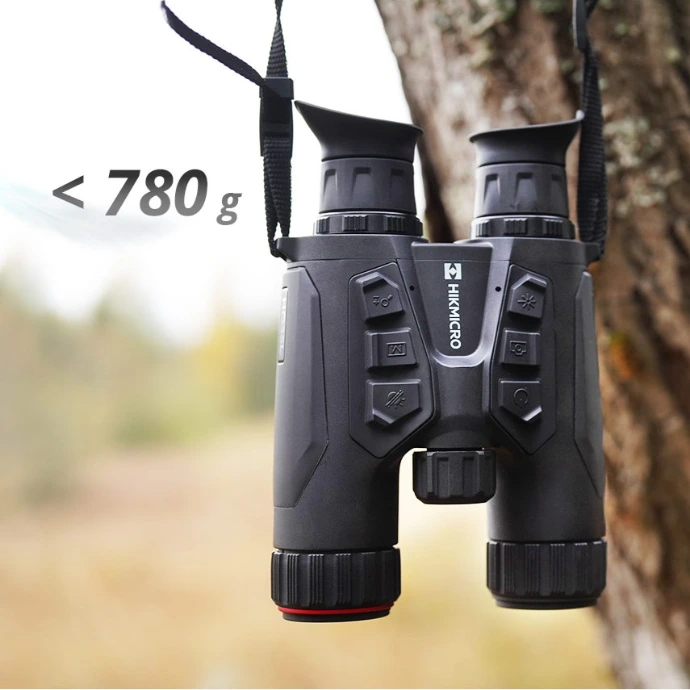

• Lightweight at 780 g, with a compact and ergonomic design.

OPTICAL MODULE

• IMAGE SENSOR: 1.88" progressive scan CMOS
• MAX. RESOLUTION: 2560 × 1440
• FOCAL LENGTH: 31 mm
• APERTURE: F1.2
• IMAGE ENHANCEMENT: Yes
• MIN. FOCUS DISTANCE: 3 m
• MIN. ILLUMINATION: 0.001 lux @ (F1.0, AGC On)
• MAGNIFICATION: 2.9 - 23.2 (x8 zoom)
• FIELD OF VIEW (H × V), DEGREES/M @100 M: 13.9° × 7.8° (H × V)/ 24.4 m × 13.6 m @ 100m
• SMART IR: YES
• IR ILLUMINATOR WAVELENGTH: 940 nm
• NIGHT VISION RANGE: 350 m

THERMAL MODULE

• SENSOR: VOx Uncooled Focal Plane Arrays
• RESOLUTION: 384 × 288
• FRAME RATE: 50 Hz
• PIXEL PITCH: 12 μm
• SPECTRAL BAND: 8 µm – 14 µm
• NETD: < 20 mk (@25°C, F# = 1.0)
• LENS (FOCAL LENGTH): 35 mm
• APERTURE: F 1.0
• DIGITAL ZOOM: 1 ×, 2 ×, 4 ×, 8 ×
• MAGNIFICATION: 4.0 - 32.0 (x8 zoom)
• DETECTION RANGE: 1800 m
• MIN. FOCUS DISTANCE: 3.5 m
• FOCUS MODE: Manual
• FIELD OF VIEW (H × V), DEGREES/M @100 M: 7.5° × 5.7° (H × V)/ 13.2 m × 9.9 m @ 100m

IMAGE DISPLAY

• DISPLAY: 0.49 inch, OLED, 1920 × 1080
• PALETTES: Thermal Warm White, Warm Black, Warm Red, Fusion / Optical: Day, Night, Auto
• FFC MODE (FLAT FIELD CORRECTION): Auto, Manual, External correction
• EXIT PUPIL: 8 mm
• EYE RELIEF: 15 mm
• DIOPTRIA: -5 D to +3 D
• BRIGHTNESS ADJUSTMENT: Yes
• TONE ADJUSTMENT: Cool, warm
• CONTRAST ADJUSTMENT: Yes
• PRO IMAGE: Yes
• PRO ZOOM: Yes

SYSTEM

• INTERNAL MEMORY: 64 GB
• VIDEO RECORDING: Yes
• PHOTO RECORDING: Yes
• AUDIO RECORDING: Yes
• SLEEP MODE: Yes
• PIP: Yes
• HOTSPOT: Yes
• FOLLOW HOT SPOT: Yes
• GPS: Yes
• DIGITAL MAGNETIC COMPASS: Yes
• LOCAL ALBUM: Yes

POWER

• BATTERY TYPE: Replaceable and rechargeable Li-ion battery
• BATTERY OPERATING TIME: 6 hours of continuous operation with hotspot function disabled (@25°C)
• TYPE-C POWER: Yes

GENERAL

• PROTECTION LEVEL: IP67
• DIMENSION: 138.2 mm × 68.4 mm × 212.9 mm
• WEIGHT: 780 g without battery
• OPERATING TEMPERATURE: -30°C to 55°C

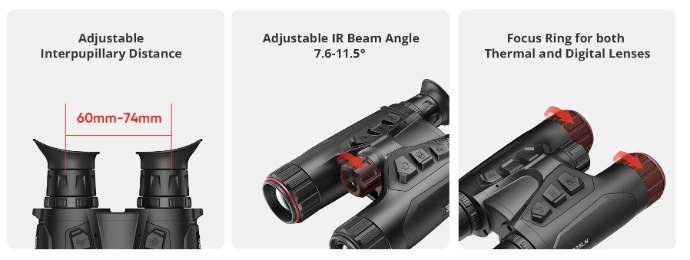

• INTERPUPILLARY ADJUSTMENT RANGE: 60 mm to 70 mm
• MOUNTING ADAPTER: 1/4''-20-UNC

LASER RANGEFINDER

• LASER SAFETY CLASS: Class 1
• WAVELENGTH: 905 nm
• MAX. MEASUREMENT RANGE: 1000 m
• MEASUREMENT ACCURACY: ± 1 m
• MIN MEASUREMENT DISTANCE: 10 m

INFRARED ILLUMINATOR

• EMITTER: LED
• IR WAVELENGTH: 940nm
• BEAM ANGLE: Adjustable from 7.6 to 11.5°

The buyer is required to comply with the regulations in force regarding the use of night vision and/or thermal equipment in their area.
