A rail designed to facilitate the handling of large game

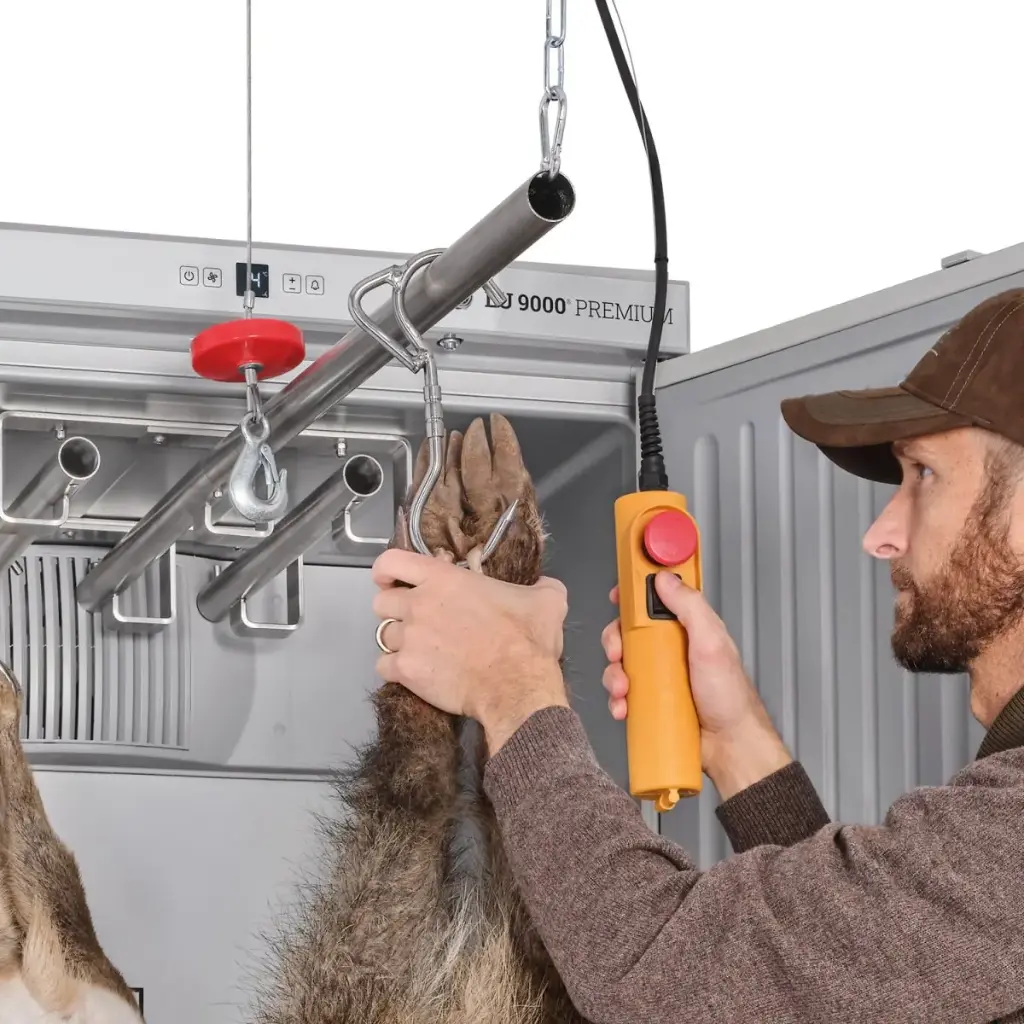

The LANDIG Flex-Rail System provides a simple mechanical solution: instead of carrying the game directly into the refrigerator, you can suspend it on an external bar and then slide it into the rail system.
The external track of 800 mm offers a loading space in front of the refrigerator. Once the load is properly suspended, the bar can be moved inside. LANDIG announces a system resistance of up to 200 kg.
For hunters
If you regularly handle wild boar or large game and use a compatible LANDIG LU 9000 Premium, this system makes perfect sense when it comes time to bring a heavy piece into the refrigerator.
You have a dedicated loading track, an external bar, and a suspension system that avoids having to carry the entire load directly inside.
How to assemble the tubular rail system?
1
Position
Place the rail system components on the refrigerator and align them correctly.
2
Fix
Tighten the 4 supplied screws with the included hex key.
3
Install
Insert the outer loading bar into the rail and check that it slides properly.
4
Secure
Attach the chain to the bar with the carabiner, then to the ceiling with a fixture capable of supporting at least 200 kg.
Why buy the LU 9000 refrigerator tubular rail system?
Facilitates handling of heavy game
The system allows for moving suspended game rather than having to carry or pull a heavy piece directly.
Possible handling by one person
LANDIG states that the system allows for easily bringing animals weighing up to 150 kg into the refrigerator by one person.
A structure designed for heavy loads
The system is advertised as resistant up to 200 kg. However, it is always necessary to respect the load limits and installation conditions specified by the manufacturer.
An outer rail of 800 mm
The outer rail of 800 mm creates a convenient transfer space in front of the refrigerator. It allows not to start handling directly inside the cold room.
Several hanging options
The Flex-Rohrbahn system allows for adapting the interior organization thanks to its various hanging options. Depending on the model, the installation can integrate several internal tracks.
Available for new appliances and retrofitting
The system can be provided directly at the time of refrigerator purchase or installed later on a compatible configuration.
The advantages of the Flex-Rohrbahn system
- Facilitated handling of game.
- Load up to 200 kg.
- External bar of 800 mm.
- Smooth movement on the rail.
- Flexible hanging inside the refrigerator.
- Chain and carabiner included.
- Designed for large game.
- Compatible with the relevant LANDIG refrigerators.
LANDIG, designed for game handling
The Flex-Rohrbahn system facilitates a step that is often physical: bringing in and positioning the game in the refrigerator.
Thanks to the external loading bar and the rail system, the game can be moved on a suspension track rather than carried directly.
A solution particularly suited for the handling of large game, especially when the weight makes operations more difficult to perform alone.
Valentin's opinion
What I like about this system is that it addresses a real field problem: getting a heavy piece into the refrigerator without turning the handling into a physical ordeal.
On a large wild boar, this is typically the kind of equipment I prefer to have already installed rather than looking for a solution at the last minute. I especially recommend it if you use a LANDIG LU 9000 and regularly handle large game.
Technical specifications
Safety
- Chain: included
- Carabiner: included
- Ceiling mount: required to secure the external bar
- Minimum anchor point capacity: 200 kg
- Ceiling fixings: not provided
Mounting
- Rail attachment: with provided screws
- Outer bar: sliding in the rail system
- Securing: chain connected to a ceiling anchor point
- Tools provided: hex key
Compatibility
- Brand: LANDIG
- Product: Flex-Rohrbahnsystem
- Model: LU 9000 Premium
- Product reference : SA3095
- Compatibility : LANDIG refrigerators of the 5th, 6th, and 7th generations
- Installation : new device or upgrade on compatible equipment
Rail system
- Type : flexible tubular rail system
- Outer track : 800 mm
- Inner tracks : up to 3 depending on configuration
- Hanging : flexible options
- Maximum announced load : up to 200 kg
- Usage : hanging and moving game
Kit contents
- 1 × suspended rail system
- 1 × external loading bar
- 4 × screws
- 1 × carabiner
- 1 × chain
- 1 × hex key
